Titanium Aluminum Material Branson 803 Ultrasonic Transducer 20kHz

Product Categories
Hangzhou Altrasonic Technology Co., Ltd
Contact Now

Titanium Aluminum Material Branson 803 Ultrasonic Transducer 20kHz

Brand Name : Altrasonic

Model Number : HS-B803

Certification : CE

Place of Origin : CHINA

MOQ : 2 units

Price : negotiation

Payment Terms : T/T, Western Union

Supply Ability : 1000 units per month

Delivery Time : 7 working days after received your payment

Packaging Details : Packed in carton

Product Name : Ultrasonic converter

Frequency : 20Khz

Ceramic diameter : 50 mm

Capacitance : 11.5 - 12.5nf

Power : 1500W

Application : Plastic welding Machine

Ceramic disc : 4pcs or 6pcs

Material : Titanium, Aluminum materials optional

Protective outer cover : Aluminum and stainless steel optional

Delivery time : 7workdays

Contact Now

Branson 803 20kHz Ultrasonic Transducer Titanium Aluminum

Specifications:
Model:HS-B803
Frequency:20 kHz
Output power:1500 watt
Joint bolt:1/2-20unf
Ceramic disc Diameter:50 mm
Quantity of Ceramic discs:4 pcs or 6pcs
Capacitance:11.5 - 12.5 nf
Amplitude:20 um
Application:welding machine


Warranty:

We offer the same warranty as the OEM, namely, three years one-time replacement.
Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced (one time).
What we can do for you:
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.

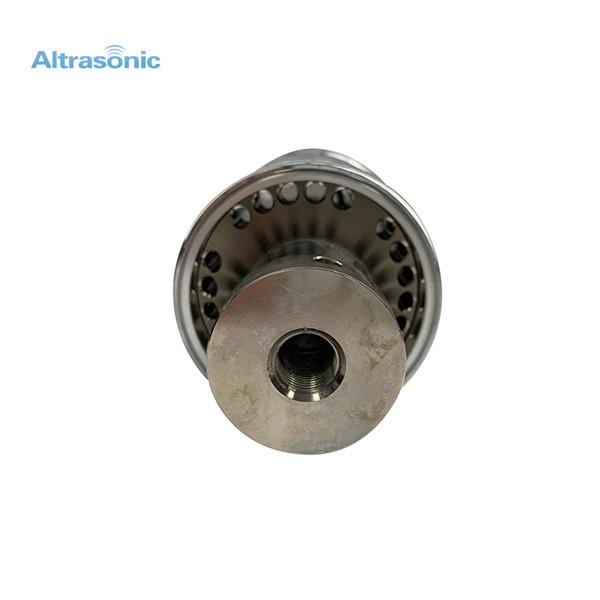

Detail Images:
Titanium Aluminum Material Branson 803 Ultrasonic Transducer 20kHzTitanium Aluminum Material Branson 803 Ultrasonic Transducer 20kHz
