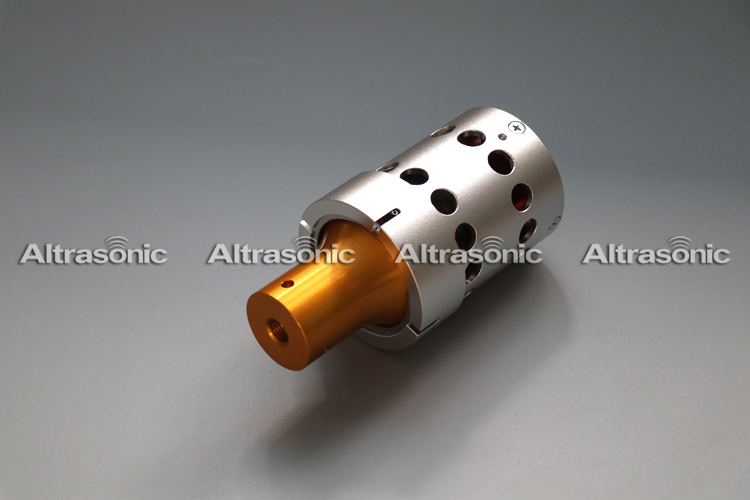

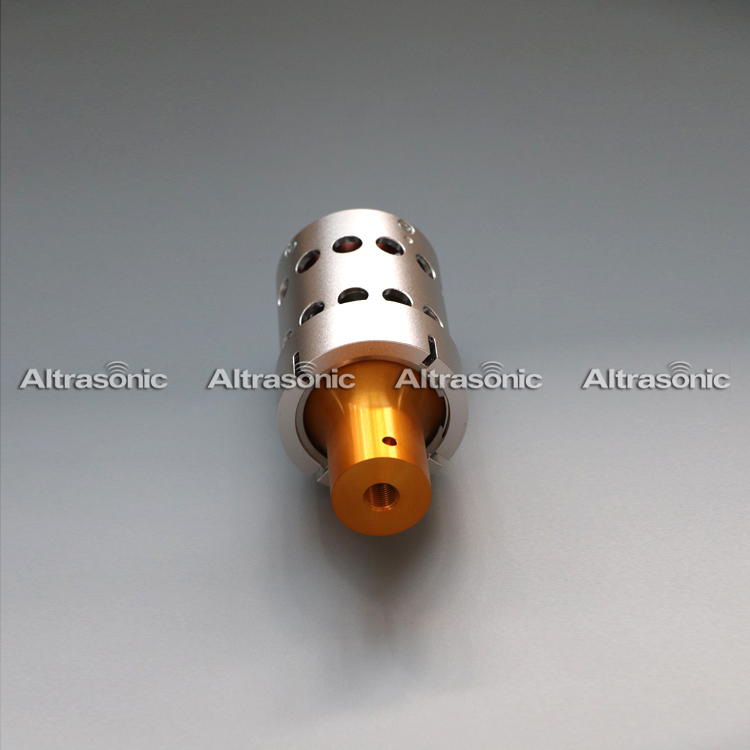

High Power Ultrasonic Transducer 20khz Replacement Dukane 41C30

Name: High Power Ultrasonic Transducer 20khz Replacement Dukane 41C30
Brand: Altrasonic
Price: 1 USD

High Power Ultrasonic Transducer 20khz Replacement Dukane 41C30 Manufactures

Brand Name : Altrasonic

Model Number : Replacement Dukane 41C30

Certification : CE

Place of Origin : China

MOQ : 1PCS

Price : Negotiable

Payment Terms : T/T or western Union

Supply Ability : 1,000 units per month

Delivery Time : 14working days after received your payment

Packaging Details : Packed in carton firstly,and then reinforced with wooden case for outer packing

Product Name : Welding Transducer

Frequency : 20 khz

Ceramic diameter : 50 mm

Capacitance : 11-17nF

Power : 2000W

Application : Welding machine

Amplitude : 20 um

Ceramic disc : 4 pcs

Material of booster : Titanium, Aluminum, Steel materials optional

Protective housing : Aluminum and stainless steel optional

Contact Now

^{High Power Ultrasonic Transducer 20khz Replacement Dukane 41C30}

^{Specifications:}

^Model	^{Replacement Dukane 41C30}
^Frequency	^20Khz
^{Output power}	^{2000 watt}
^{Joint bolt}	^{1/2-20 UNF}
^{Ceramic disc Diameter}	^50mm
^{Qty of ceramic discs}	^4pcs
^Capacitance	^{11-17 nf}
^Amplitude	^{20 um}
^Application	^{Plastic welding machine}

^Description:

^{The 2000 Watt 20 KHz Ultrasonic Converter Direct replacement for the Dukane 41C30 that delivers lower cost, rugged quality and superior value.}

^{The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.}

^{^{Applied Range:}}

^{^{Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,}}

^{^{which can be widely used to do welding in various kinds of industries.

Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric}}

^{^{clothing,packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.}}

^{^{Replacement Item:}}

^{^{Item No}}	^{^{Connect Screw (Size)}}	^{^{Ceramic diameter}} ^{^(mm)}	^{^{Qty of ceramic}} ^{^(PC)}	^{^{Frequency(khz)}}	^{^{Resistance(Ω)}}	^{^{Color of ceramic}}	^{^Capacitance}	^{^{Input Power}} ^{^(W)}
^{^{Branson CJ20}}	^{^1/2-20UNF}	^⁵⁰	^⁶	^{^19.90}	^¹⁰	^{^Yellow}	^{²⁰⁰⁰⁰}	^³³⁰⁰
^{^{Branson 502}}	^{^1/2-20UNF}	^⁵⁰	^⁶	^{^19.90}	^¹⁰	^{^Yellow}	^{²⁰⁰⁰⁰}	^³³⁰⁰
^{^{Branson 402}}	^{^M8*1.25}	^²⁵	^⁴	^{^39.60}	^¹⁰	^{^Yellow}	^⁴²⁰⁰	^⁸⁰⁰
^{^{Branson 4TH}}	^{^M8*1.25}	^²⁵	^⁴	^{^39.90}	^¹⁰	^{^Yellow}	^⁴²⁰⁰	^⁸⁰⁰
^{^{Branson 902}}	^{^1/2-20UNF}	^⁴⁰	^⁴	^{^19.85}	^¹⁰	^{^Yellow}	^⁸⁰⁰⁰	^¹¹⁰⁰
^{^{Branson 922J}}	^{^1/2-20UNF}	^⁵⁰	^⁶	^{^19.90}	^¹⁰	^{^Yellow}	^{²⁰⁰⁰⁰}	^²²⁰⁰
^{^{Dukane 40K}}	^{^M8*1.25}	^³⁵	^²	^{^39.80}	^⁵	^{^Gray}	^³⁰⁰⁰	^⁸⁰⁰
^{^{Dukane 20K}}	^{^1/2-20UNF}	^⁵⁰	^²	^{^19.50}	^¹⁰	^{^Yellow}	^{¹¹⁰⁰⁰}	^²⁰⁰⁰
^{^{Dukane 110-3122}}	^{^1/2-20UNF}	^⁵⁰	^⁴	^{^19.50}	^¹⁰	^{^Yellow}	^{¹¹⁰⁰⁰}	^²⁰⁰⁰
^{^{Dukane 110-3168}}	^{^1/2-20UNF}	^⁴⁵	^²	^{^19.50}	^¹⁰	^{^Yellow}	^⁴⁰⁰⁰	^⁸⁰⁰
^{^{Rinco 35K}}	^{^M8*1.25}	^²⁵	^²	^{^34.80}	^⁵⁰	^{^Yellow}	^²⁰⁰⁰	^⁹⁰⁰
^{^{Rinco 20K}}	^{^M16*2}	^⁵⁰	^²	^{^19.90}	^⁵⁰	^{^Yellow}	^⁵⁰⁰⁰	^³⁰⁰⁰
^{^{Telsonic 35K}}	^{^M8*1.25}	^²⁵	^⁴	^{^35.00}	^⁵	^{^Yellow}	^⁴⁰⁰⁰	^¹²⁰⁰
^{^{Telsonic 20K}}	^{^1/2-20UNF}	^⁵⁰	^⁴	^{^20.00}	^³	^{^Yellow}	^{¹⁰⁰⁰⁰}	^²⁵⁰⁰

^{^{What we can do for you:}}

^{^{1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.}}

^{^{2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.}}

^{^{3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.}}
