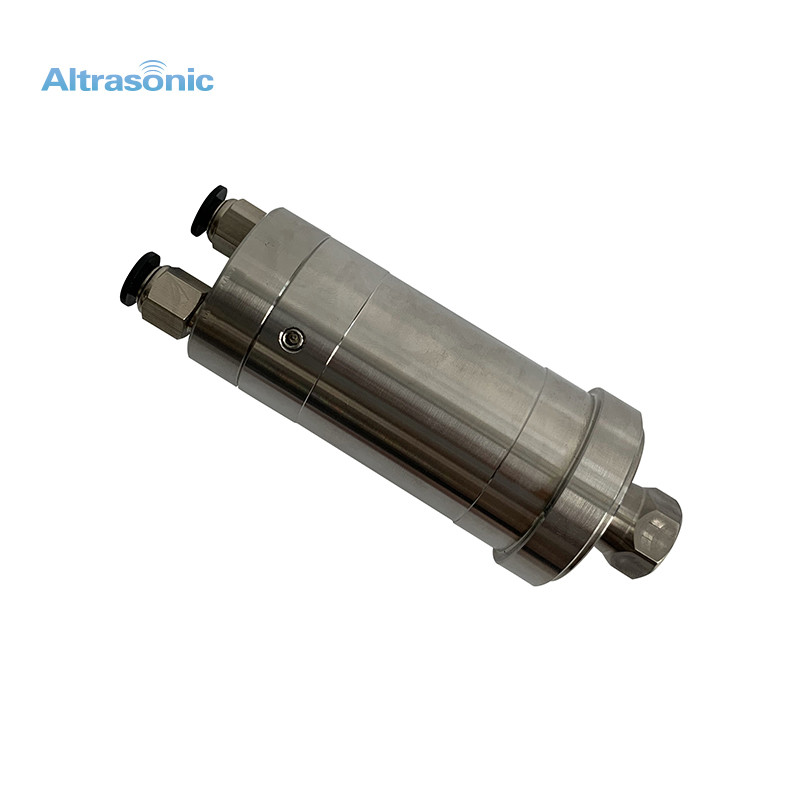

2022 CE Replacement Herrmann 35Khz Ultrasonic Transducer Welding Repair With Coupler HF Interface
Specifications:
| Model | Replacement Herrmann 35K |
| Frequency | 35 khz |
| Output power | 1000 watt |
| Joint bolt | M18 * 1.5 |
| Capacitance | 5-8nF |
| Amplitude | 10 um |
| Application | welding machine |
Descriptions:
It is applied to Herrmann type ultrasonic welding machine.
Ultrasonic Converters and Ultrasonic Transducers are one in the same. There is one Ultrasonic OEM, Dukane Corporation, that uses the term Transducer. All of the other ultrasonic OEM manufactures such as Branson, Sonics and Materials, Rinco, Telesonics and Herrmann refer to these as Converters or Konverters.
Converters or Transducers all do the same thing…convert electrical energy to mechanical movement…so we have our electrical charge being introduced across the surface of the ceramics at the desired frequency which in turn gives us a movement or vibration at the working end on the converter.
The converter is threaded onto a booster, which increases, decreases or just transfers the amount of movement from the face of the converter to the horn or Sonotrode as we call it.
Competitive Advantage:
1. Titanium, aluminum, steel materials of horn optional.
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
