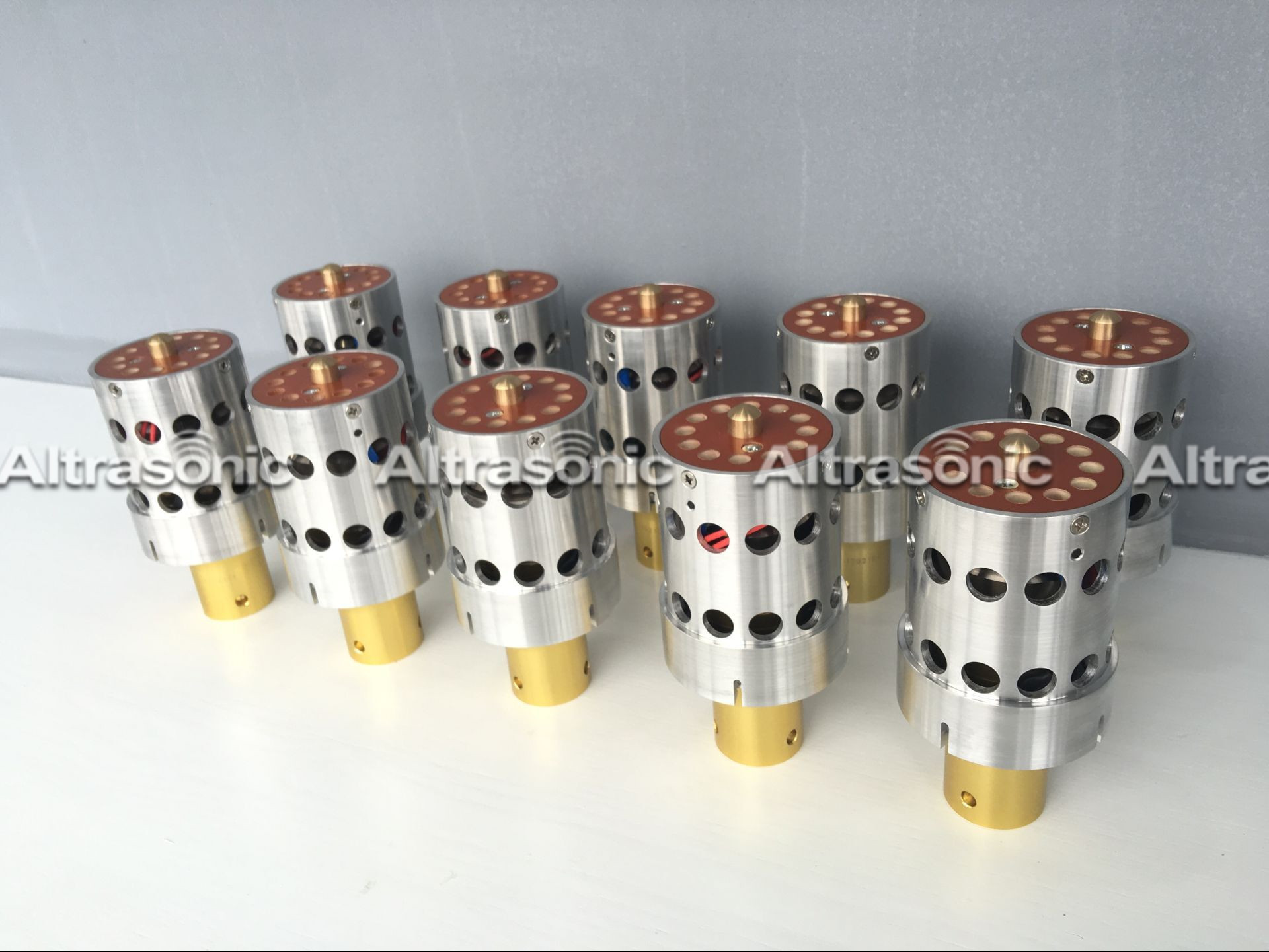

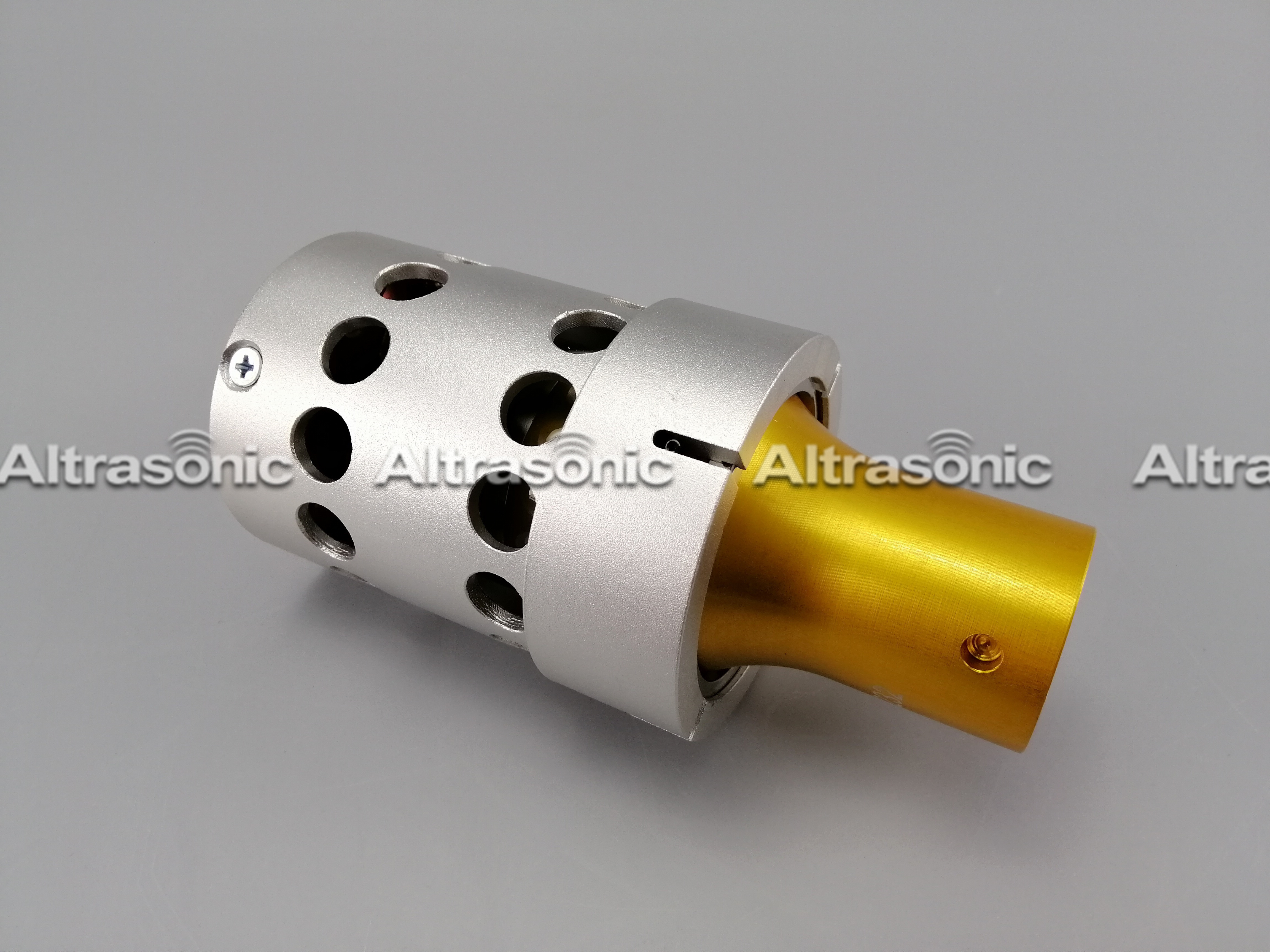

2022 High Efficiency Ultrasonic Welding Transducer 20kHz Replacement Dukane 110-3122
Specifications:
| Model | HS-D110-3122 |
| Frequency | 20 khz |
| Output power | 2000 watt |
| Joint bolt | 1/2-20UNF |
| Ceramic disc Diameter | 50 mm |
| Quantity of Ceramic discs | 4 pcs |
| Capacitance | 11nF |
| Amplitude | 20 um |
| Application | welding machine |
Description:
It is applied to Dukane type 110-3122 ultrasonic welding machine.
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Applied Industries :
Automobile industry, electric industry, medical industry, household appliance industry, non woven fabric
clothing, packing, office supplies, toys, etc.
Applied Machines :
Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.
Competitive Advantages:
1. Titanium, aluminum, steel materials of horn optional.
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
Warranty:
We offer the same warranty as the OEM, namely, one years one-time replacement.
Simply ship the broken unit back to arrive within one years of original shipment, and it will be replaced (one time).
