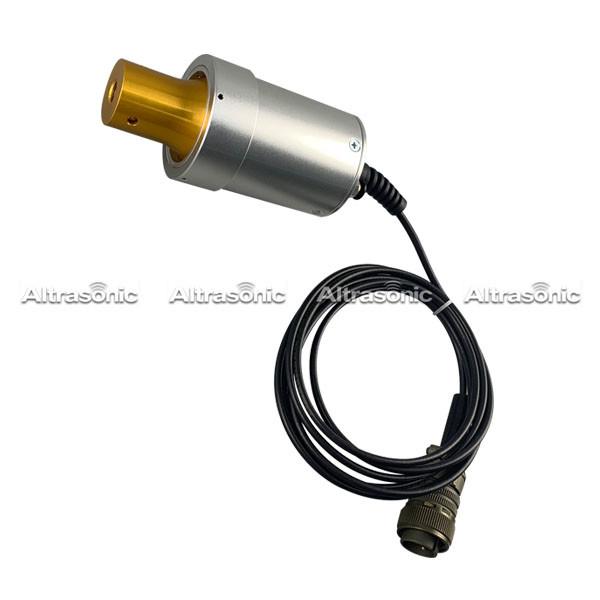

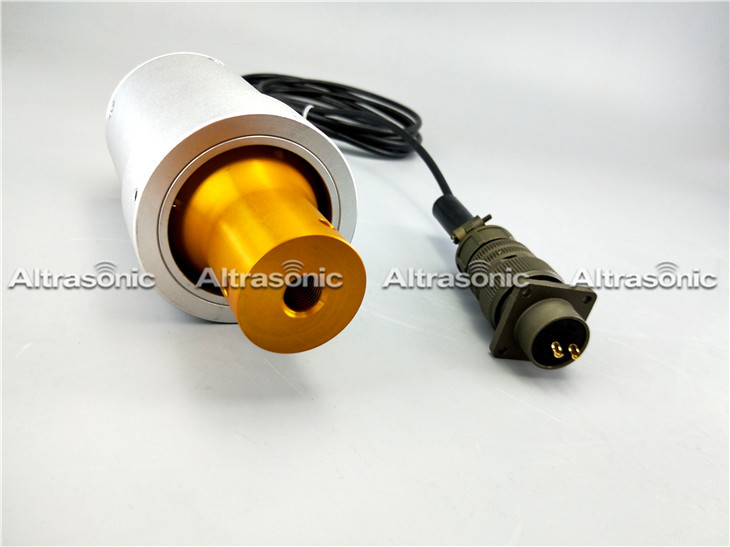

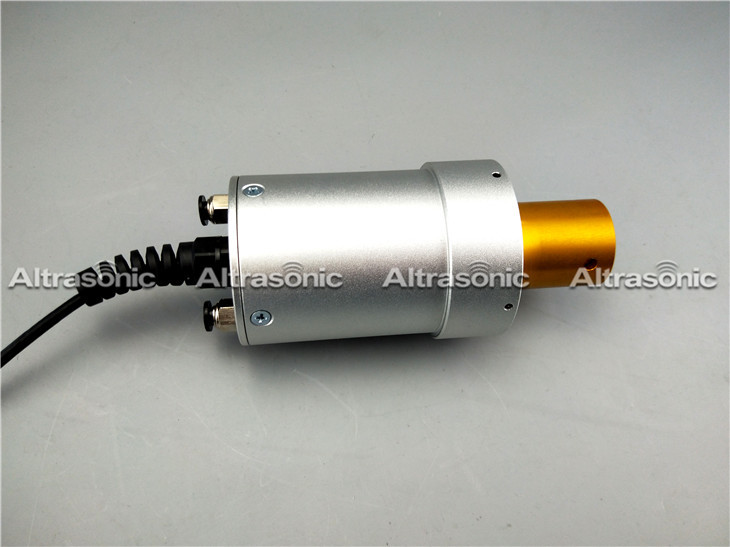

Replacement Dukane Ultrasonic Welding Transducer 20kHz 4 Ceramics

  • 1
  • 2
  • 3

Brand Name : Altrasonic

Model Number : HS-D41S30

Certification : CE

Place of Origin : China

MOQ : 1PCS

Price : Negotiable

Payment Terms : T/T, Western Union,paypal

Delivery Time : 5 workdays

Frequency : 20kHz

Output Power : 1000-3000watt

Joint Bolt : 1/2-20 UNF

Ceramic disc Diameter : 50mm

Qty of ceramic discs : 4pcs

Capacitance : 11nf

Amplitude : 20 um

Application : Plastic welding machine

Warranty : 1 Year

Aftersales service : Online service

Contact Now

Replacement Dukane 20kHz 4 Ceramics Ultrasonic Welding Transducer 41S30

Specifications:

Model HS-D41S30
Frequency 20Khz
Output power 1000-3000 watt
Joint bolt 1/2-20 UNF
Ceramic disc Diameter 50mm
Qty of ceramic discs 4pcs
Capacitance 11nf
Amplitude 20 um
Application Plastic welding machine

Description:

It is applied to Dukane type ultrasonic welding machine.

The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.

Applied Industries :automobile industry, electric industry, medical industry, household appliance industry, non woven fabric

clothing, packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.
Our Service:

Conforming to the spirit of "Service First", ALTRASONIC provides lifetime maintenance to its products for as long as they are used by customers.

Altrasonic’s service team is 24/7 available for support. Our well trained and experienced service engineers advise and support on-line or if necessary on location. Whether a custom-made production line or a standard machine: we always ensure that production can be resumed as soon as possible.

Replacement Dukane Ultrasonic Welding Transducer 20kHz 4 CeramicsReplacement Dukane Ultrasonic Welding Transducer 20kHz 4 Ceramics

Factory workshop:

Replacement Dukane Ultrasonic Welding Transducer 20kHz 4 Ceramics

Replacement Dukane Ultrasonic Welding Transducer 20kHz 4 Ceramics
