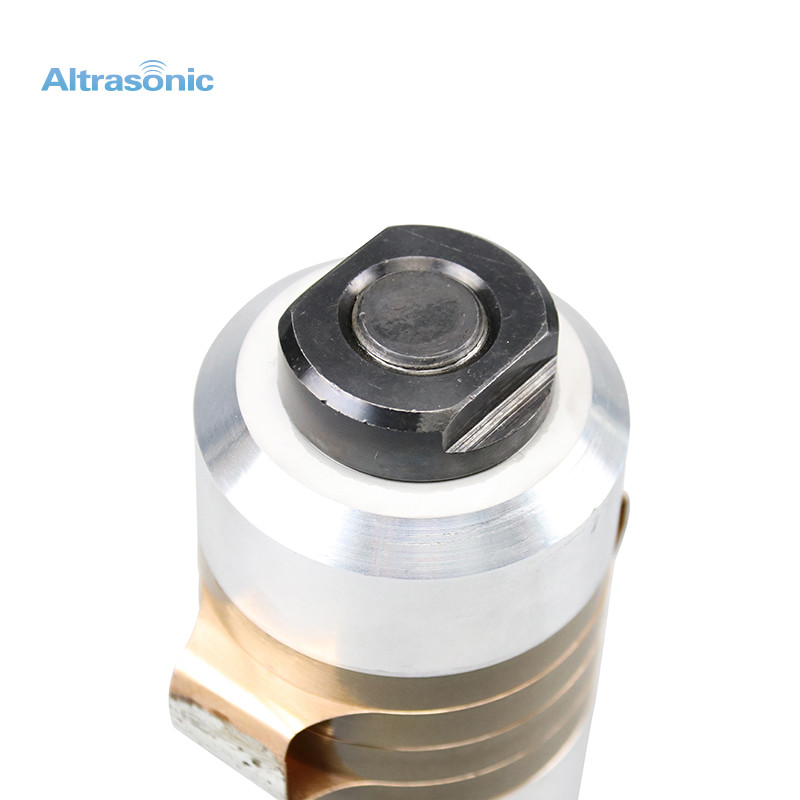

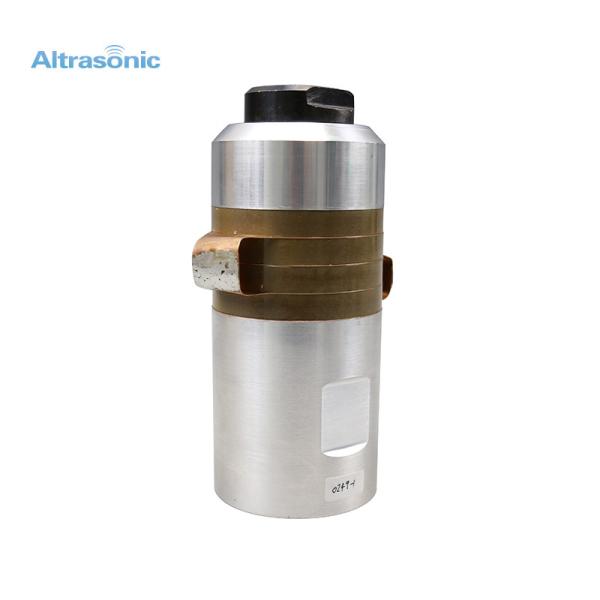

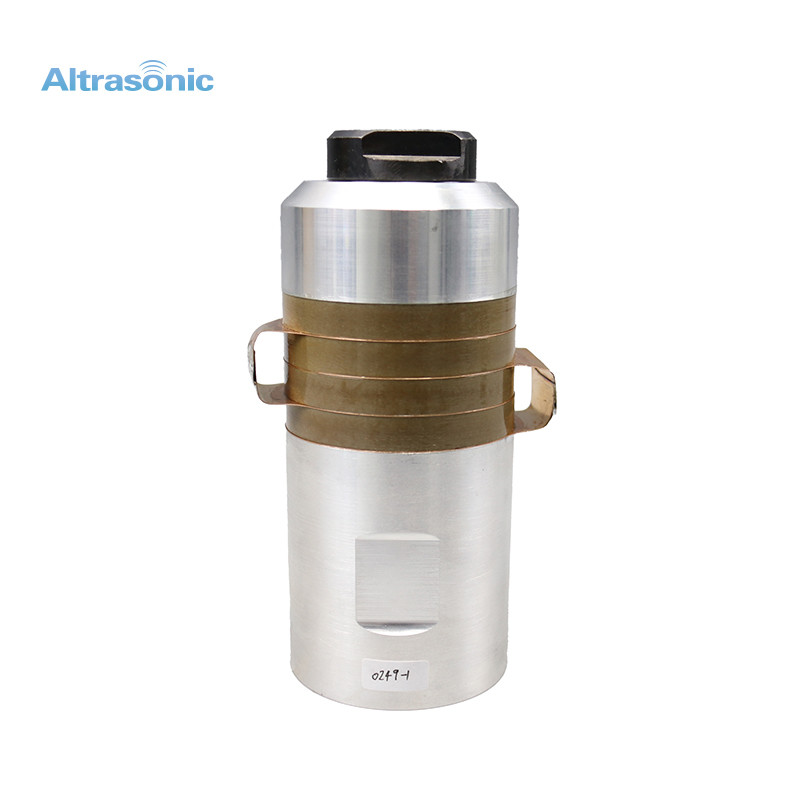

Plastic Welding Ultrasonic Transducer 15Khz 16um Amplitude 4 Ceramics

Name: Plastic Welding Ultrasonic Transducer 15Khz 16um Amplitude 4 Ceramics
Brand: Altrasonic
Price: 1 USD

Plastic Welding Ultrasonic Transducer 15Khz 16um Amplitude 4 Ceramics Manufactures

Brand Name : Altrasonic

Model Number : HS-7015-4Z

Certification : CE

Place of Origin : China

MOQ : 1PCS

Price : Negotiable

Payment Terms : T/T or western Union

Supply Ability : 5,000 units per month

Delivery Time : 7 working days after received your payment

Packaging Details : Packed in carton firstly,and then reinforced with wooden case for outer packing

Joint bolt : M20*1.5

Ceramic diameter : 70mm

Application : Welding

Qty of ceramic : 4pcs

Capacitance : 12.5-14nF, 17-19nF

Power : 2600watt

Amplitude : 16um

Warranty : 1 Year

Frequency : 15kHz

Contact Now

2022 New 15Khz Ultrasonic Welding Transducer For Plastic Welding

Specifications:

Model	HS-7015-4Z
Frequency	15khz
Output power	2600watt
Joint bolt	M20*1.5
Ceramic disc Diameter	70mm
Quantity of Ceramic discs	4pcs
Amplitude	16um
Application	Welding

Description:

The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.

Applications:

Widely used in ultrasonic welding, ultrasonic cutting,ultrasonic sewing machine,ultrasonic sonochemistry, ultrasonic wire stripping machine,ultrasonic nebulizer,Ultrasonic riveting machine.

We also provide replacement of famous brands such as Branson, Dukane, Rinco etc.
