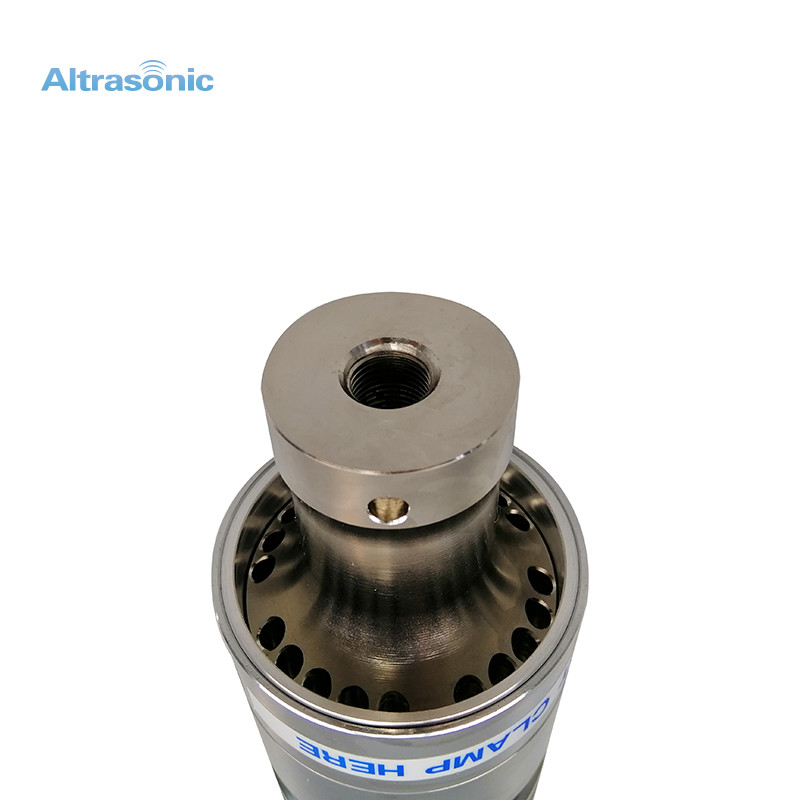

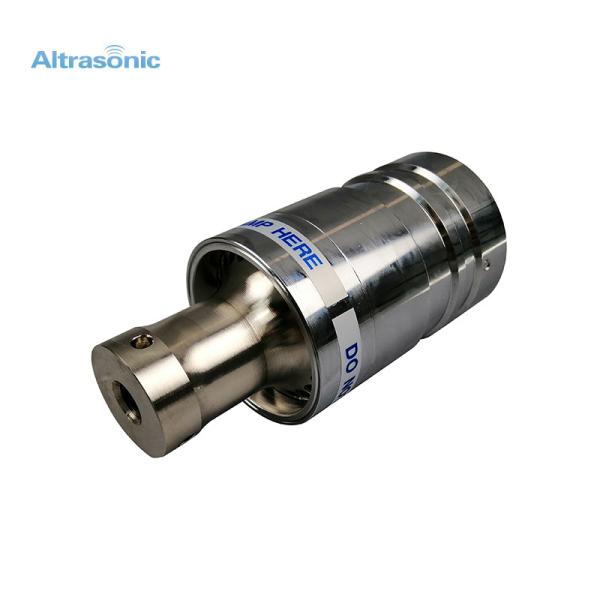

1500W Ultrasonic Power Transducer 20kHz For Replacement Branson 803

  • 1
  • 2
  • 3

Brand Name : Altrasonic

Model Number : HSB803

Certification : CE

Place of Origin : China

MOQ : 1 unit

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 10,00 units per month

Delivery Time : 7 working days after received your payment

Packaging Details : Packed in carton

Product Name : Ultrasonic Converter

Frequency : 20 Khz

Ceramic Diameter : 50 mm

Joint Bolt : 1/2-20 UNF

Power : 1500W

Application : Welding Machine

Amplitude : 20 Um

Ceramic Disc : 4 Pcs Or 6pcs

Material : Titanium, Aluminum Materials Optional

Protective Housing : Aluminum And Stainless Steel Optional

Contact Now

20kHz Ultrasonic Power Transducer Replacement Branson803 Ultrasonic Oscillator

Specifications:

Model HSB803
Frequency 20 khz
Output power 1500 watt
Joint bolt 1/2-20unf
Ceramic disc Diameter 50 mm
Quantity of Ceramic discs 4 pcs or 6pcs
Capacitance 11.5 - 12.5 nf
Amplitude 20 um
Application welding machine

Description:

The Ultrasonic Converter replacement for Branson Plastic Welding Machine Direct replacement for the Branson machine that delivers lower cost, rugged quality and superior value.

Competitive Advantage:

All-new made in China

Meets or exceeds all Branson specifications

Directly replaces Branson803

Certified materials

Made in ISO-9002 registered facility

Large amplitude and long service life.

What we can do for you,

1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.

2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.

3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.

1500W Ultrasonic Power Transducer 20kHz For Replacement Branson 8031500W Ultrasonic Power Transducer 20kHz For Replacement Branson 803
