40kHz 500W Ultrasonic Welding Transducer Replacement Branson 4TH

  • 1
  • 2

Brand Name : Altrasonic

Model Number : HS-B4TH

Certification : CE

Place of Origin : China

MOQ : 1PCS

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 2000pcs per month

Delivery Time : 7 working days after received your payment

Packaging Details : Packed in carton

Product Name : Ultrasonic Transducer

Frequency : 40Khz

Power : 500W

Connect Screw : M8

Ceramic Diameter : 25 mm

Qty Of Ceramic : 4pcs

Capacitance : 4.5 -5.3 nf

Application : Welding

Finish : Depending On Customer's Requirements

Warranty : 1 year

Contact Now

40kHz 500W Ultrasonic Welding Transducer Replacement Branson 4TH

Specification:

Model HS-B4TH
Frequency 40 khz
Output power 500 watt
Joint bolt M8
Ceramic disc Diameter 25 mm
Quantity of Ceramic discs 4 pcs
Capacitance 4.5 -5.3 nf
Amplitude 6 um
Application welding machine

Description:

The transducer is the core component of the entire ultrasonic system, responsible for converting high frequency and high voltage into mechanical vibration energy.

What we can do for you,

1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.

2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.

3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.

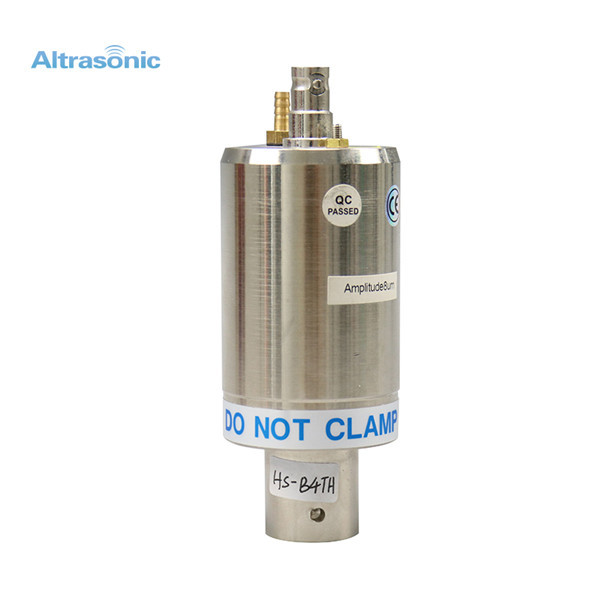

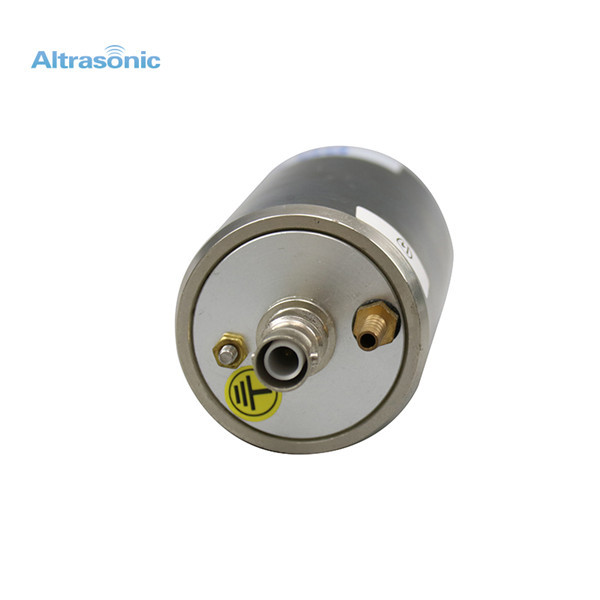

Detailed Images:

40kHz 500W Ultrasonic Welding Transducer Replacement Branson 4TH40kHz 500W Ultrasonic Welding Transducer Replacement Branson 4TH

40kHz 500W Ultrasonic Welding Transducer Replacement Branson 4TH40kHz 500W Ultrasonic Welding Transducer Replacement Branson 4TH40kHz 500W Ultrasonic Welding Transducer Replacement Branson 4TH40kHz 500W Ultrasonic Welding Transducer Replacement Branson 4TH

Tag: ultrasonic piezoelectric transducer, high frequency ultrasonic transducer
