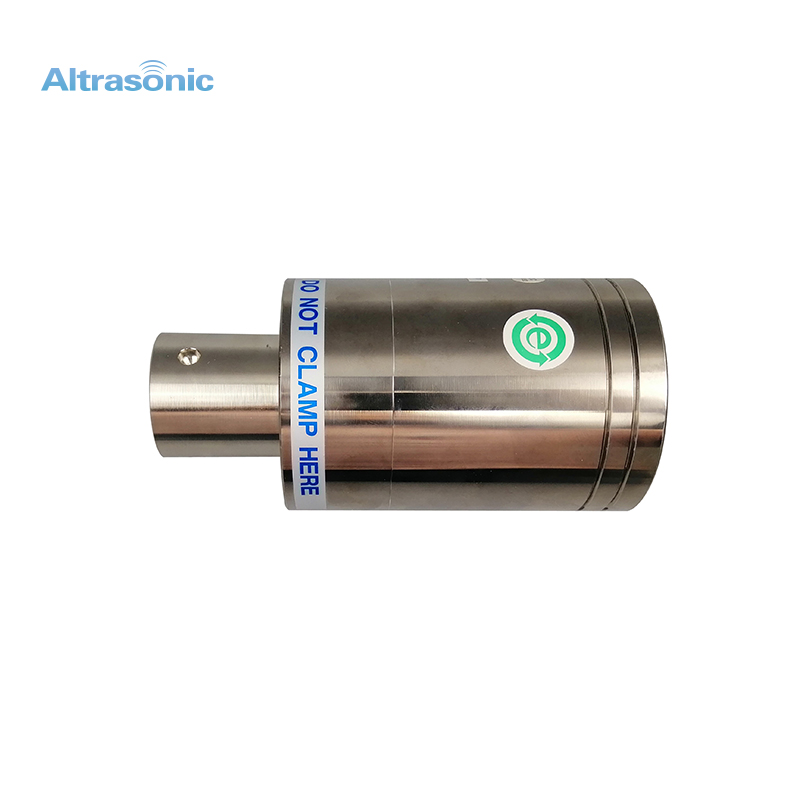

Plastic Welding 20Khz Ultrasonic Transducer 3300 Watt For Branson CJ20

  • 1
  • 2
  • 3

Brand Name : Altrasonic

Model Number : HS-BCJ20

Certification : CE

Place of Origin : CHINA

MOQ : 2 units

Price : negotiation

Payment Terms : T/T, Western Union

Supply Ability : 1000 units per month

Delivery Time : 7 working days after received your payment

Packaging Details : Packed in carton

Product Name : Ultrasonic converter

Frequency : 20Khz

Ceramic diameter : 50 mm

Capacitance : 19-21 nf

Power : 3300W

Application : Plastic welding Machine

Ceramic disc : 6 pcs

Material : Titanium, Aluminum materials optional

Protective outer cover : Aluminum and stainless steel optional

Delivery time : 7workdays

Contact Now

20Khz Ultrasonic Welding Transducer 3300 Watt For Branson CJ20 Transducer

Specifications:
Model
HS-BCJ20
Frequency
20 khz
Output power
3300 watt
Joint bolt
1/2-20 UNF
Ceramic disc Diameter
50 mm
Quantity of Ceramic discs
6 pcs
Capacitance
19-21 nf
Amplitude
20 um
Application
welding machine
Description:
Piezoelectric ultrasonic transducers converter used in a wide range of applications. These devices enable ultrasonic welding equipment to work effectively in commercial and industrial environments.
Applied Range:

Replacement ultrasonic converter for Branson model CJ-20 (101-135-059),

for use with all 20KHz 2000 and 2000X actuator and IW systems.

Competitive Advantage:

1. Titanium materials

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.

What we can do for you,

1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.

2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.

3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.

Product Display
Plastic Welding 20Khz Ultrasonic Transducer 3300 Watt For Branson CJ20
Plastic Welding 20Khz Ultrasonic Transducer 3300 Watt For Branson CJ20
