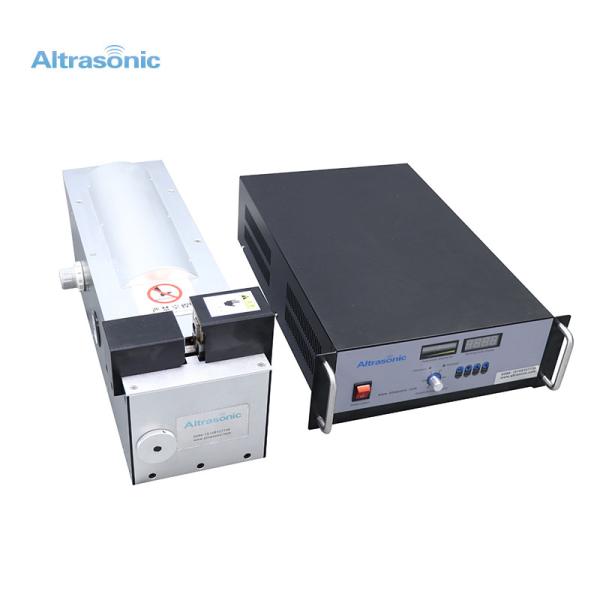

20kHz Ultrasonic Metal Welder One Time Welding Molding

Brand Name : Altrasonic

Model Number : HS-2040

Place of Origin : CHINA

MOQ : 1 Unit

Packaging Details : Wooden Box

Frequency : 20kHz

Power : 4000watt

Welding area : 1-30mm2

Working are pressure : 0.05-0.9MPa

Voltage : 220V

Weight : 28KGs

Working head size : 550*250*240mm

Machine size : 540*380*150mm

Contact Now

20kHz Ultrasonic Harness Welding Machine One-Time Welding Molding

Specifications:

Model No#
HS-X2020A
HS-X2030A
HS-X2040A
Power
2000W
3000W
4000W
Welding area
0.5-16mm²
0.5-20mm²
1-30mm²
Working air pressure
0.05-0.9MPa
0.05-0.9MPa
0.05-0.9MPa
Frequency
20kHz
20kHz
20kHz
Voltage
220V
220V
220V
Weight
18KGs
22KGs
28KGs
Working head Size
530*210*230mm
550*220*240mm
550*250*240mm
Machine Size
540*380*150mm
540*380*150mm
540*380*150mm

Advantages:


A. Welding materials do not melt, not fragile metal characteristics
B. After welding, the electrical and thermal conductivity are good, and the resistivity is very low or nearly zero
C. Low requirements on the surface of the welded metal, both oxidation and electroplating can be welded
D. Short soldering time, without any flux, gas, or solder
E. Easy to realize the connection and automatic control between dissimilar metals
F. Welding without sparks, fast and environmentally safe

20kHz Ultrasonic Metal Welder One Time Welding Molding

Characteristic:

● Adopts automatic control technology to make welding operation easy and simple

● The ultrasonic system is stable and reliable

● An ideal production equipment for welding similar or different conductive alloys and non-ferrous metals of different thicknesses

● Ultrasonic solar metal welding machine DC motor stepless speed regulation, welding direction can be easily set through the panel

● Simple mechanism and easy to install

20kHz Ultrasonic Metal Welder One Time Welding Molding

20kHz Ultrasonic Metal Welder One Time Welding Molding

20kHz Ultrasonic Metal Welder One Time Welding Molding
