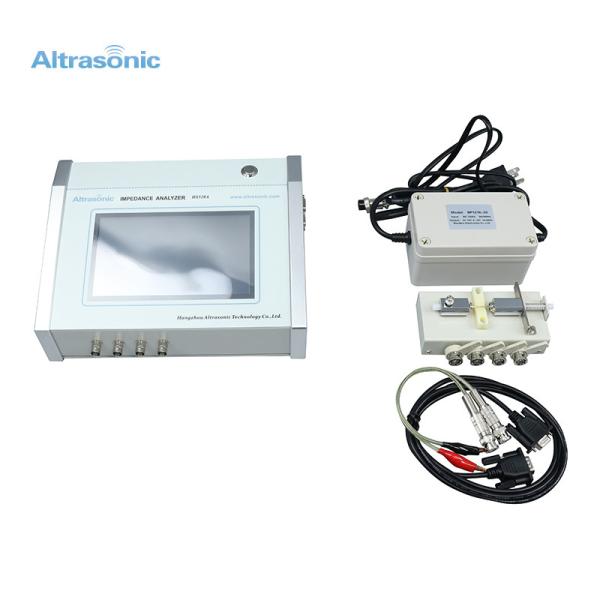

Ultrasonic Frequency Impedance Graphic Analyzer 1khz-500khz

  • 1
  • 2

Brand Name : Altrasonic

Model Number : HS520A (Newest)

Certification : CE

Place of Origin : China

MOQ : 1

Price : negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100 sets per month

Delivery Time : 3 days

Packaging Details : carton

Part Name : Impedance Analyzer

Frequency Range : 1KHz～500KHz/hz/5Mhz

Frequency Accuracy : ±10 Ppm

Amplification : Piezoelectric Ceramic, Ultrasonic Transducer, Power Ultrasonic

Net Weight : 3.5kg

Dimensions : 240*190*100mm

Speed Of Measuring : 0.5s / One Pass

Phase Accuracy : 0.15 degree

Impedance Range : 0.1Ω~1MΩ

Frequency Step : 0.1Hz to Any

Contact Now

1khz-500khz ultrasonic transducer frequency impedance graphic analyzer

Deacription:

Ultrasonic Analyzer HS520A is jointly developed by the Automation department of China Tsinghua University and the Chinese Academy of Sciences. It was widely used in the detection of piezoelectric ultrasonic devices and equipment of integrated solutions.

Specification:

Product name Ultrasonic impedance analyzer
Frequency range 1kHz~500kHz
Measurement Index All the parameters, the graph
Measurement Accuracy <0.5%
Frequency Accuracy ±10ppm
Impedance Range 1Ω~1MΩ
Size 24*19*10cm
Test environment temperature 10～40℃
Frequency Step 0.1Hz～Any

The parameters that can be measured by impedance analyzer:


Static capacitance
Resonant frequency
Anti resonance frequency
Mechanical Quality Factor
Minimum impedance
Maximum impedance
Impedance phase
Frequency bandwidth
Electromechanical Coupling Coefficient
