Gun Type Ultrasonic Spot Welder 800W For Fabric And Plastic

Product Categories
Hangzhou Altrasonic Technology Co., Ltd
Contact Now

Gun Type Ultrasonic Spot Welder 800W For Fabric And Plastic

  • 1
  • 2
  • 3

Brand Name : Altrasonic

Model Number : HS-GW35

Certification : CE

Place of Origin : CHINA

MOQ : 1PC

Price : Negotiation

Payment Terms : T/T, Western Union, PayPal

Supply Ability : 5000 pieces/month

Delivery Time : 7 workdays after receipt of the full payment.

Packaging Details : Packed in carton firstly,and then reinforced with wooden case for outer packing

Product Name : Ultrasonic Spot Welding Machine

Frequency : 35khz

Power : 800W

Horn : ≤10mm

Housing Diameter : 51mm

Handle Size : 100mm×45mm×32mm

Weight Without Wire And Horn : 20kg

Type : Gun Type

Application : Automotive Parts

Contact Now

Ultrasonic Spot Welder Machine For Welding Fabric And Plastic

Description:

Use the small welding head of the ultrasonic machine to divide the two plastic products into multi-point welding, or directly press the entire row of tooth-shaped welding heads on the two plastic workpieces to achieve the effect of ultrasonic spot welding.

Specifications:

Model

HS-GW35

Frequency

35kHz

Power

800W

Generator

Digital

Horn Size

Customizable

Horn Material

Titanium alloy

Advantages:

1. Using piezoelectric ceramic transducer, the output is stable and strong.
2. It adopts straight-handle or pistol-style design, which is more convenient to operate.
3. The welding effect is controlled manually, which is easy to operate and does not require the use of cylinder pressure.
4. With automatic compensation circuit, the power can be adjusted freely to achieve uniform spot welding effect.

Application:

The handheld ultrasonic spot welding machine can be used for the welding, riveting, spot welding of films, fabrics, and thermoplastic products, as well as the inlay and edge pressing process between metal parts and plastic parts.

Product display:

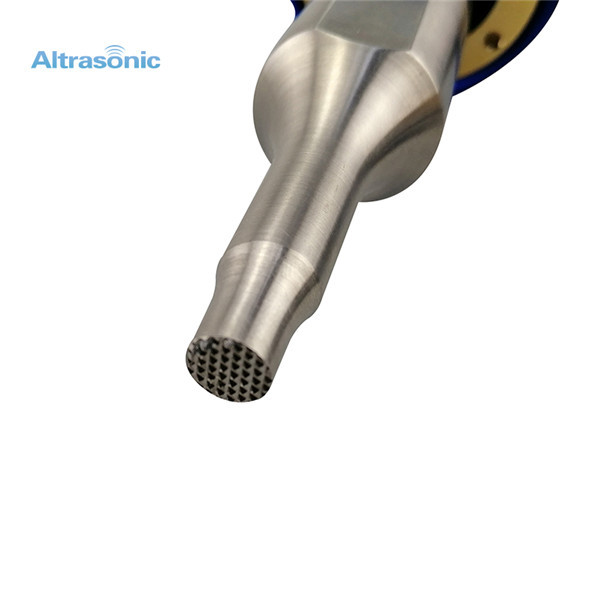

Gun Type Ultrasonic Spot Welder 800W For Fabric And Plastic
