40khz Ultrasonic Titanium Rubber Cutting Machine With 82MM Blade

  • 1
  • 2
  • 3

Brand Name : Altrasonic

Model Number : HS-CR40

Certification : CE

Place of Origin : CHINA

MOQ : 1 unit

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 5,000 units per month

Delivery Time : 200 Set per month

Packaging Details : carton

Frequency : 40khz

Blade : 82MM

Material : Titanium

Power : 500w

Weight (KG) : 8KG

Application : Rubber/Plastic/Food

Contact Now

40khz Ultrasonic Cutting Machine For Rubber Cutting Titanium

Description:

The ultrasonic rubber cutting knife uses ultrasonic energy to locally heat the cutting part to melt it, thereby cutting. The whole cutting process will not cause chipping and damage of the cutting material. Ultrasonic cutting uses high-frequency vibration to cut rubber, rather than simply cutting with blade pressure, which reduces friction with rubber, so the blade is not easy to stick.

Specification:

Frequency 40Khz
Power 500W/800W
Inupt AC110-240V, 50/60Hz
Power Controller stepping or continuous
Material of Cutting Head aluminum alloy, stainless steel, titanium alloy, alloy steel.
Machine Wight 4 kg-16KG
Accessories foot switch, additional blade
Cooling Device compressed air mouth can be installed.
Cable Length 2M or customized
Foot Switch available

Application:

1. For thermal plastic gate cutting and flush cutting.

2. For non-woven or woven cutting,textile cutting, fabric cutter, curtain cutting,window blind fabric
3. For Rubber, PVC, leather plastic, cardboard, acrylic, polyprolene and so on cutting.
4. For tape and film cutting .
5. For paper cutting,printing industry cutting.

6. For package material cutting

7. For the automotive industry cutting

Detailed Image:

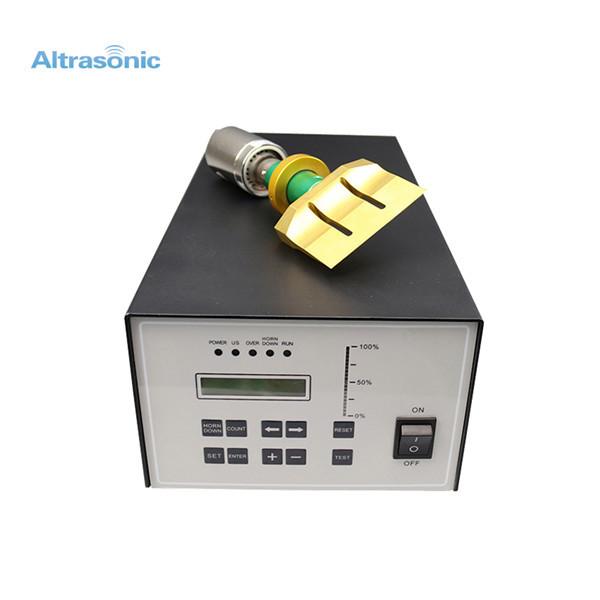

40khz Ultrasonic Titanium Rubber Cutting Machine With 82MM Blade

40khz Ultrasonic Titanium Rubber Cutting Machine With 82MM Blade
