Titanium Ultrasonic Welding Transducer 20 Khz Replacement Branson 803
Description:
The 20khz titanium ultrasonic welding transducer replacement brason 803 Direct replacement for the Branson machine that delivers lower cost, rugged quality and superior value.
First, all of the parts are all new.
The parts are made from certified materials in tightly controlled manufacturing processes, assembled and
tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to
ensure performance that duplicates the OEM part.
Specifications:
| Model | HS-B803 |
| Frequency | 20 khz |
| Output power | 1500 watt |
| Joint bolt | 1/2-20unf |
| Ceramic disc Diameter | 50 mm |
| Quantity of Ceramic discs | 4 pcs or 6pcs |
| Capacitance | 11.5 - 12.5 nf |
| Amplitude | 20 um |
| Application | welding machine |
Product features:
All-new made in China
Meets or exceeds all Branson specifications
Directly replaces Branson803
Certified materials
Made in ISO-9002 registered facility
Warranty:
We offer the same warranty as the OEM, namely, three years one-time replacement.
Simply ship the broken unit back to arrive within three years of original shipment, and it will be
replaced (one time).

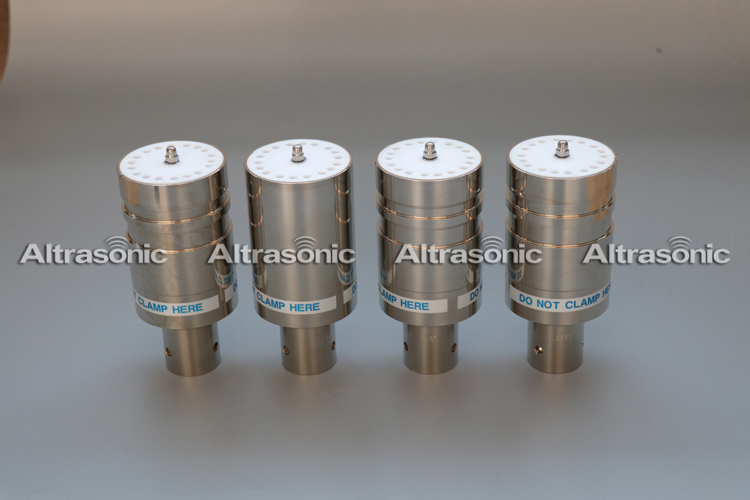

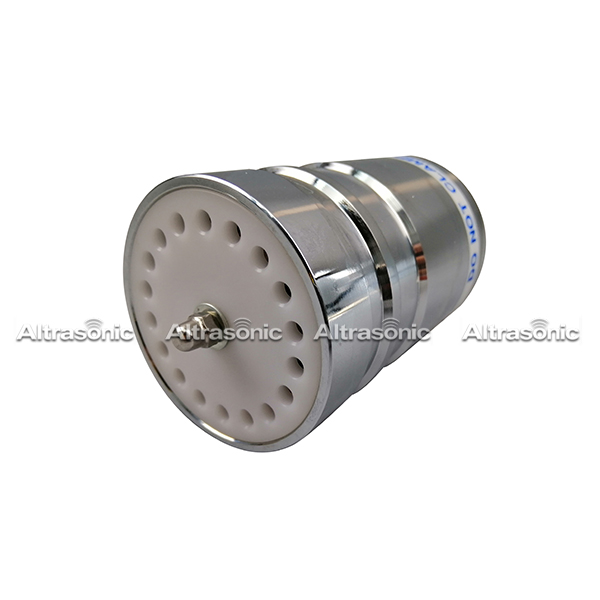

Detailed Images:
What we can do for you:
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
