25Khz Waterproof Ultrasonic Transducer With Two Ceramics For Welding Machine

Name: 25Khz Waterproof Ultrasonic Transducer With Two Ceramics For Welding Machine
Brand: Altrasonic
Price: 1 USD

25Khz Waterproof Ultrasonic Transducer With Two Ceramics For Welding Machine Manufactures

Brand Name : Altrasonic

Model Number : HS-5025-2Z

Certification : CE

Place of Origin : China

MOQ : 1PCS

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 5,000 units per month

Delivery Time : 7 working days after received your payment

Packaging Details : Packed in carton firstly,and then reinforced with wooden case for outer packing

Product Name : Ultrasonic Welding Transducer

Ceramic Diameter : 50mm

Type : NTK Type

Joint Bolt : M 12*1

Capacitance : 5~5.6nf

Application : Welding

Contact Now

25Khz Waterproof Ultrasonic Transducer With Two Ceramics For Welding Machine

Description:

The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.

Specifications:

Model	HS-5025-2Z
Frequency	25 Khz
Output power	500 W
Joint bolt	M12*1
Ceramic disc Diameter	50 mm
Quantity of Ceramic discs	2 pcs
Capacitance	5~8 nF
Amplitude	6 um
Application	Welding

Ultrasonic Transducer introduction :

Ultrasonic transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube. The Ultrasonic transducer is widely used in ultrasonic cleaning machine and high-power industry cleaning devices.

25Khz Waterproof Ultrasonic Transducer With Two Ceramics For Welding Machine

Ultrasonic Transducer features :

good heat resistance

large range of working temperature

low resonance impedance and heat productivity

good construction

fastened by bolt

easy for assembling

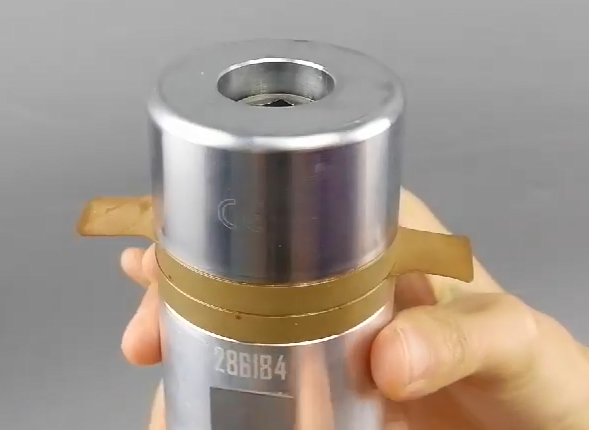

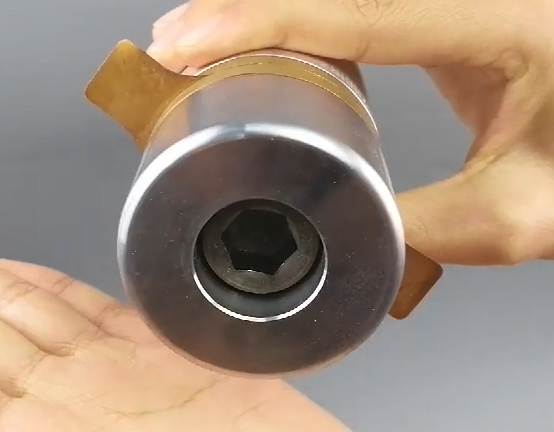

Detailed Images:

25Khz Waterproof Ultrasonic Transducer With Two Ceramics For Welding Machine
