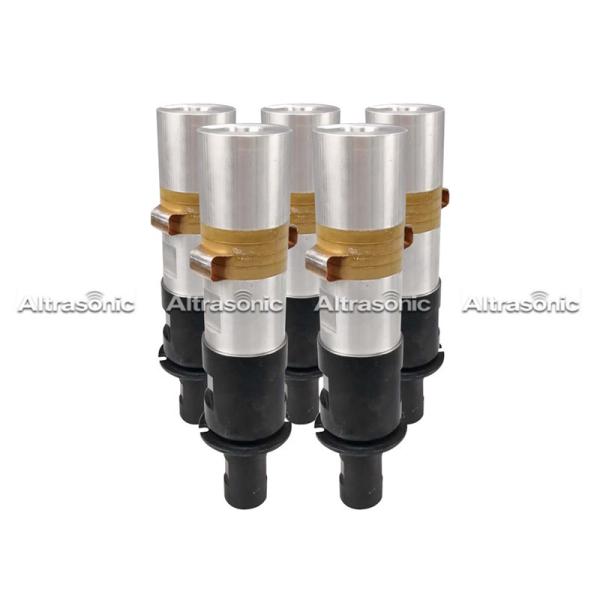

20khz Frequency 1500w Ultrasonic Welding Transducer For Mask Making Machine
Specification:
| Model | HS-5020-4Z |
| Frequency | 20khz |
| Output Power | 1500watt |
| Joint Bolt | M18*1.5 |
| Ceramic Disc Diameter | 50mm |
| Quantity of Ceramic Discs | 4pcs |
| Capacitance | 11-17nf |
| Amplitude | 8um |
| Application | Welding
|
Description:
Ultrasonic welding converts 50/60 Hz current into 15, 20, 30 or 40 KHz electrical energy using an ultrasonic generator. The converted high-frequency electric energy is converted into mechanical motion of the same frequency again through the transducer, and then the mechanical motion is transmitted to the welding head through a set of amplitude changing rod devices. The welding head transmits the received vibration energy to the joint of the workpiece to be welded. In this area, the vibration energy is converted into thermal energy by friction to melt the plastic. Ultrasound can be used not only to weld rigid thermoplastics, but also to process fabrics and films. The main components of an ultrasonic welding system include an ultrasonic generator, a transducer / amplifier / welding head triplet, a mold and a frame.
Instructions for use:
The frequencies of the ultrasonic transducer, booster and horn must match each other.
The frequency of the horn and booster should be lower than the frequency of the transducer.
The connection surface must be vertical and flat, and the connection torque must be appropriate.
The welding of the electrode plates should be reliable and covered with damping glue.
Input power should be lower than rated power
Competitive Advantage:
1. Stable parameters
2. Easy matching with ultrasonic power supply
3. Superior raw materials
4. Accept OEM cooperation
Main Features:
1. High mechanical quality
2. Piezoelectric element offer a high speed of vibration.3. Having steady output amplitude even the load markedly changed.
4. Extended using temperature, ensuring good amplitude linearity
5. Bolt-on mounting gives the fast, easy installation and high reliability.
6. easy for assembling
7. good heat resistance
8. large range of working temperature
9. low resonance impedance and heat productivity
10. good construction
11. fastened by bolt
