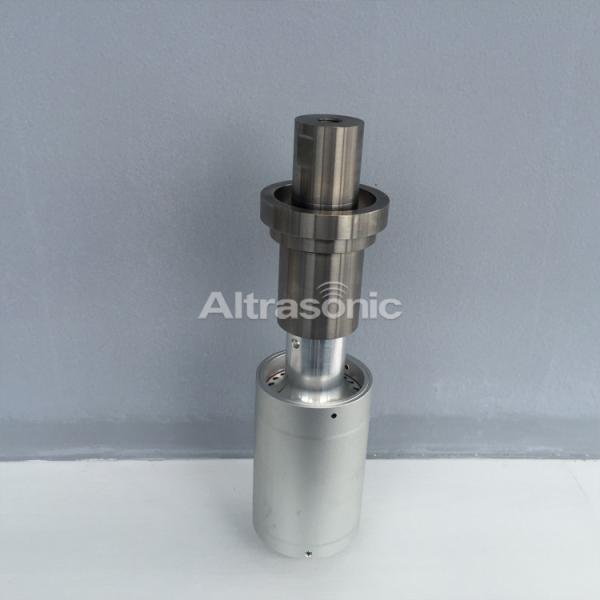

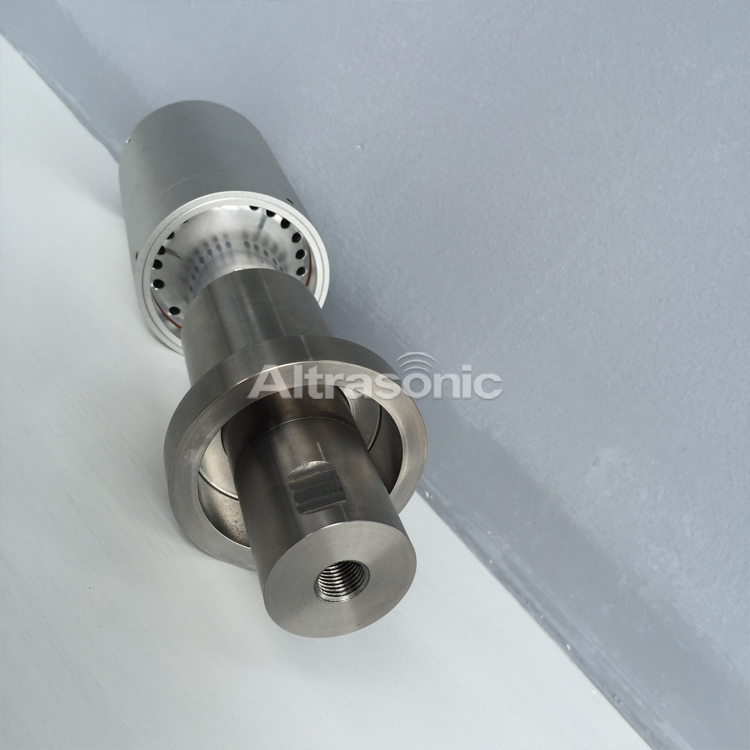

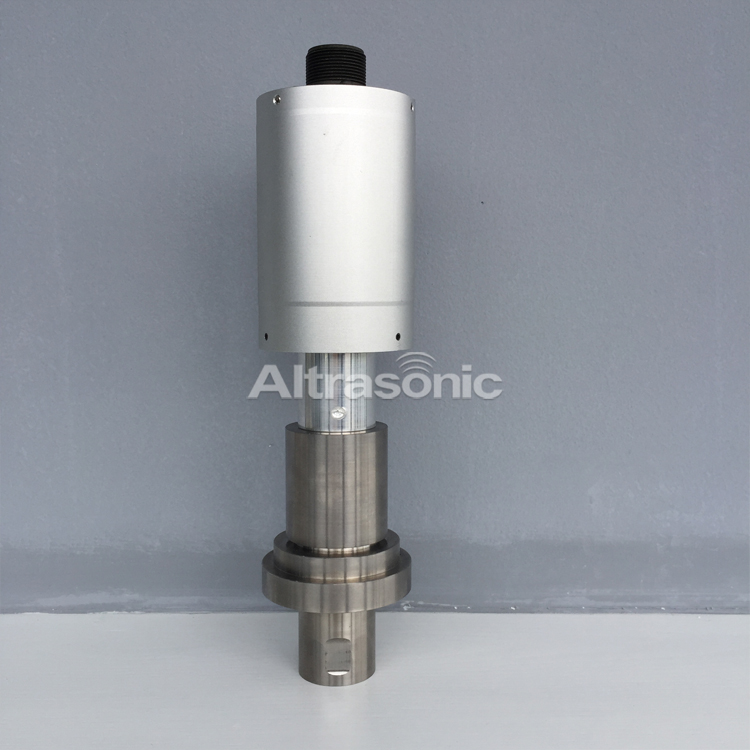

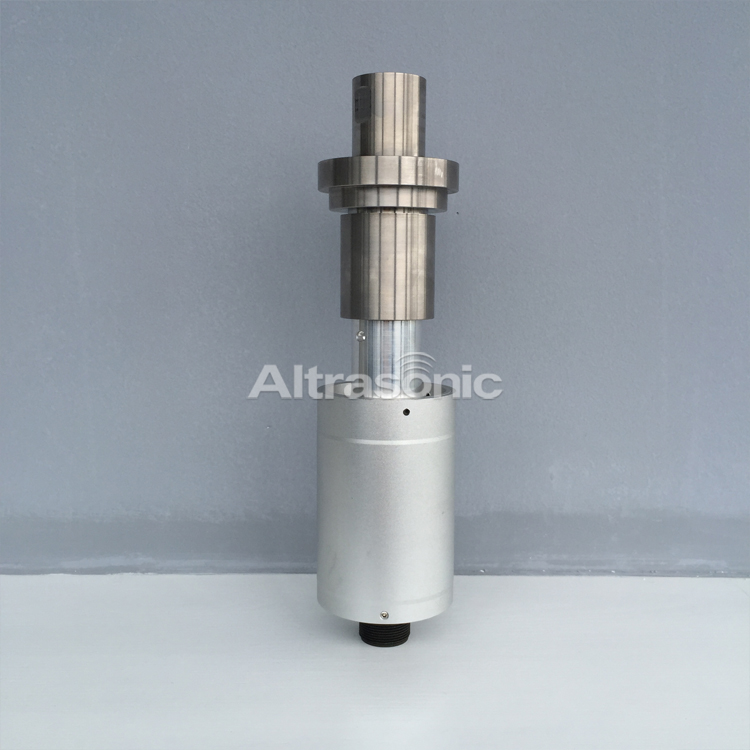

20Khz 2500w Ultrasonic Welding Converter Replacement for Telsonic Ceramic Diameter 50mm
Specifications:
| Model | HST-20 |
| Frequency | 20 khz |
| Output power | 2500W |
| Joint bolt | 1/2-20UNF |
| Ceramic disc Diameter | 50 mm |
| Quantity of Ceramic discs | 4 pcs |
| Capacitance | Different item No., with different capacitance |
| Amplitude | 20 um |
| Application | welding machine |
Description:
Direct replacement for the 20khz Tesonic machine.
You tell us the brand item No, and we can make it for you according to the brand items' No. or the original samples.
The housing can be custom - made according to your special requirements.
First, all of the parts are all new.
The parts are made from certified materials in tightly controlled manufacturing processes, assembled and
tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance tha2t duplicates the OEM part.
Warranty:
We offer the same warranty as the OEM, namely, three years one-time replacement.
Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced (one time).
Applied Range:
Replacement ultrasonic converter for Telsonic model, for use with 20KHz welding machine.
Competitive Advantage:
- In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
- Titanium materials and Aluminum materials optional.
- Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
- One by one testing to ensure that each transducer performance are excellent.
What we can do for you,
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
20Khz 2500w Ultrasonic Welding Converter Replacement for Telsonic Ceramic Diameter 50mm
