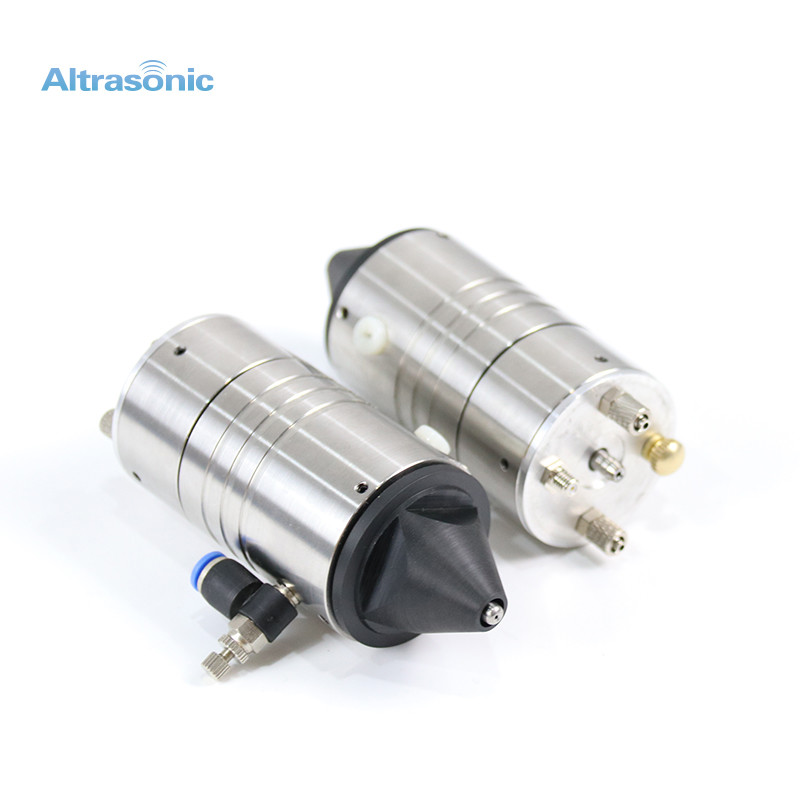

50Khz High Temperature Mini Ultrasonic Nebulizer For Circuit Board Precision Spray fluxing

Name: 50Khz High Temperature Mini Ultrasonic Nebulizer For Circuit Board Precision Spray fluxing
Brand: Altrasonic
Price: 1 USD

50Khz High Temperature Mini Ultrasonic Nebulizer For Circuit Board Precision Spray fluxing Manufactures

Brand Name : Altrasonic

Model Number : HS-N50

Certification : CE

Place of Origin : China

MOQ : 1

Price : negotiation

Payment Terms : T/T, Western Union

Supply Ability : 1000 units per year

Delivery Time : 7 work days

Packaging Details : carton/box

Frequency : 50Khz

Power : 30w

Diameter Of The Particle : 28um

Atomizing Volume : 2L/h

Nozzle Type : Long Nozzle

Atomization Speed : Max:5L/H

Power Consumption : 0.01 Degrees/Kg

Atomization Head Structure : Cylindrical / Conical

Voltage : 220V/110V

Weight : 5kg

Contact Now

50Khz High Temperature Mini Ultrasonic Nebulizer For Circuit Board Precision Spray fluxing

Description :

The Ultrasonic Atomiser uses Ultrasonic energy (Low/Medium) to generate low velocity, gentle spray unlike the conventional atomizing nozzle which depends on pressure & high velocity motion to shear a fluid into small droplets. The fluid (Liquid) is dispensed to the atomizing probe by either gravity or low-pressure small pumps & atomize continuously or intermittently as per requirement. The sample can be accurately delivered to the target area & over spray is virtually eliminated thus, resulting in material savings. The atomizer can runs continuously or be programmed to pulse On & Off

Specification:

Frequency	50KHz
Power	30W
Atomization Speed	Max:5L/H
Power Consumption	0.01 Degrees/Kg
Atomization Volume	25um
Spray Nozzle Shape	Long nozzle
Atomization Head Structure	Cylindrical / Conical

Applications :

*Blood Collection Tubes

*Medical Devices

*Hydrogen Fuel Cells

*Solar Cells Coatings

*Antimicrobial Coatings

*Float & Panel Glass

*Electronics

*Nano Technology

*Ultrasonic Spray Pyrolysis

*Bioaerosol Spray

Features:

· Non clogging

· Corrosion resistant

· Non wasteful over spray

· Reduce material consumption

· Low cost spray nozzle replacement

· High precise and highly controllable

· Very low flow rate capabilities, inter-mitten or continuous

Product display
